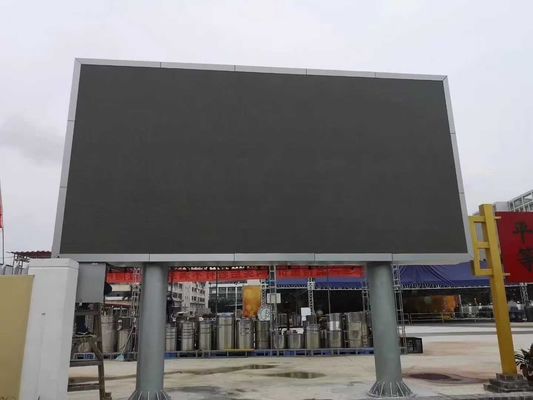

Name: SMD IP65 Outdoor Full Color LED Display Screen P10 Building Advertising LED Billboard
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 10000.00 USD
Availability: InStock

Inicio Productos Todo Color exterior llevó Display

SMD IP65 Outdoor Full Color LED Display Screen P10 Building Advertising LED Billboard

Datos del producto:

Lugar de origen:	Shenzhen en China
Nombre de la marca:	SCXK
Certificación:	CE/ROHS/FCC/ISO/CB
Número de modelo:	P10

Pago y Envío Términos:

Cantidad de orden mínima:	Sin límite
Precio:	Negociable
Detalles de empaquetado:	Caso de vuelo, estuche de madera, cartón, depende de usted.
Tiempo de entrega:	7-10 días hábiles después de recibir su pago
Condiciones de pago:	T/t, unión occidental
Capacidad de la fuente:	5000sqm por mes

Contacto

Descripción detallada del producto

Píxel:	10 mm	Color de chips de tubo:	A todo color
Tipo LED:	SMD 3535	Función de visualización:	Video/texto/imagen
Material del gabinete:	Hierro	Frecuencia de marco:	> = 60Hz
Promedio sin falla:	> = 1000 horas	Distancia de transmisión:	Cable de Internet <100m
Actualización:	> = 1920Hz	Fuente de alimentación:	AC80-260V ± 10%/50Hz,60Hz
Resaltar:	SMD IP65 outdoor LED display , P10 full color LED billboard , building advertising LED screen

SMD IP65 Outdoor Full Color LED Display Screen P10 Building Advertising LED Billboard

Product Description

SMD IP65 Outdoor Full Color LED Display Screen P8 P10 Building Advertising LED Billboard

The Advantages of P10 Advertising LED Screens

Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
Adopt top high brightness with low power consumption LED lamp, energy-saving ≥30%, if adopt 28 kinds of main patent technique, entire energy-saving ≥50%, environment protection.
Free back service path for all kinds of installation surroundings. Broadcast level color scale, color temperature and brightness-adjustable, smooth color, high color ratio, nature pictures.

Technical Parameters of P10 Advertising LED Screens

Parameter	Specification
Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000m2
Module resolution	32*16
Module size/mm	320*160
View distance	10-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Driving mode	Constant driving current
Scanning mode	static dring
Frame rate	60Hz
Refresh frequency	3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	>72hours
Mean time Between Failure	>500hours
life time	>100000hours
Envirornment temperature range	operating temperature range -200c-500c
Maximun power :/m2	<800w
Average power:/m2	<300w
Self-check technolog	LEDspot self-check,communication check,power check,temperature monitor(need customization)
Remote monitoring	Remote supervision and control,record potential fault send out warning signs to the operators(need customization)
Software environment	windows NT,Windows 1999,Windows XP
Input power cable	AC110v to220v
Signal input	DVI
Warranty	2years quality warranty ,10 years spare parts support

The Feature of P10 Module

The use of ultra-high brightness LED and high-quality plastic pieces
High-contrast hue can achieve a good display
Lightweight, easy to install, remove
Can be single-point, single lamp maintenance, low cost
Using a constant current way to drive LED, light uniformity, low power consumption
The pixel pitch is 6mm, a total of 32 * 16 pixels, each pixel consists of 1R1G1B

The Advantages of our Products

The product structure is resistant to 100 Km / h wind and 8 earthquakes.
With excellent waterproof performance, safe and reliable power system.
All components of the product can be processed according to customer requirements.
All materials are environmentally friendly materials.
The life of the product is more than 5 years.
The warranty is for 2~5 years.
We can provide additional installation, permanent technical supports, and training services.

Control System

Certificates

Our Mission

To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.

Why Choose Us?

Packing & Shipping

Packing: wooden case, flight case for choose

Shipping: by air, sea, train, DHL, you are the boss

FAQ

How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /Whatsapp, in case of any delays.
What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you to choose. The customized service also could be provided
What about the lead time for an order?
Always: 7-17 days after receiving your payment, as your order quantity, sometimes we have stock, can delivery within 7 days
What about the warranty?
We have 2~5 years of quality guaranteed, spare parts such as the led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship, Each step has strict quality control systems to ensure led display with good quality
Can you offer technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to do if you are really don't know how to control(Our Engineer can text English, we can saving more time )
