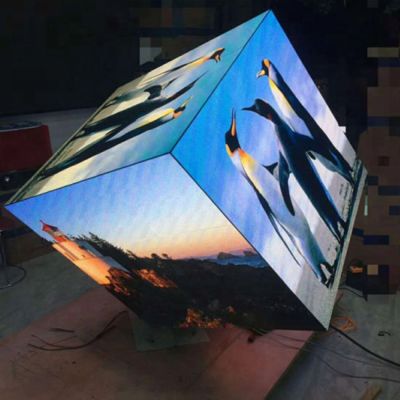

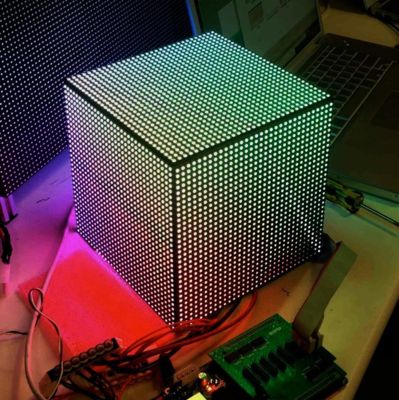

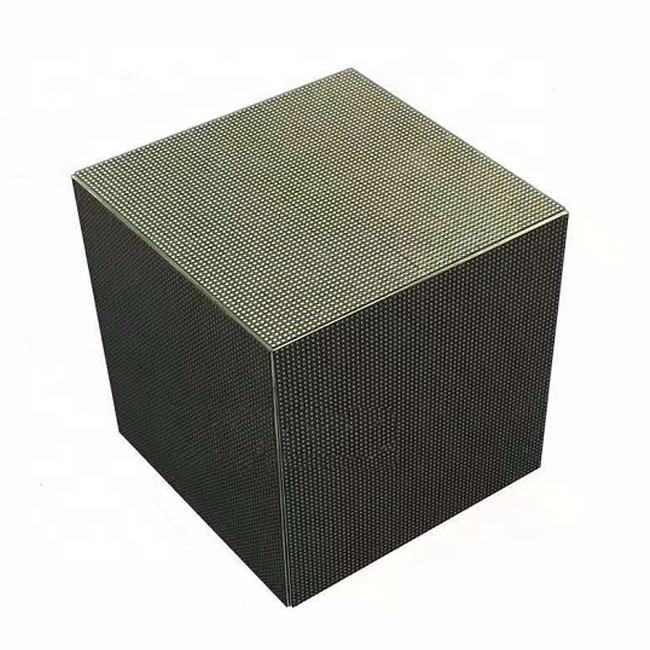

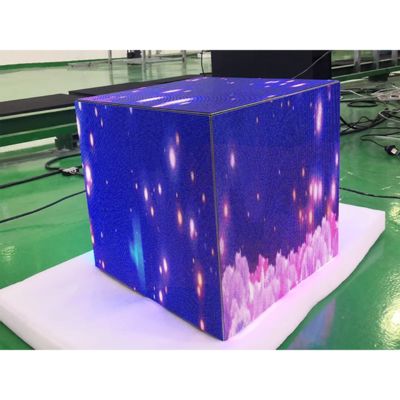

Name: Indoor 6 Sides Smd3535 2000nits Cube LED Video Wall P3.91mm For DJ Stage
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: El SMD P3.91
Price: 676.00 USD
Availability: InStock

Inicio Productos Cubierta a todo color LED

Indoor 6 Sides Smd3535 2000nits Cube LED Video Wall P3.91mm For DJ Stage

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	SCX
Certificación:	CE/ROHS/FCC/ISO/UL
Número de modelo:	El SMD P3.91

Pago y Envío Términos:

Cantidad de orden mínima:	5 metros cuadrados
Precio:	524$-828$
Detalles de empaquetado:	Caso de vuelo, estuche de madera, cartón, depende de usted.
Tiempo de entrega:	7-15 días laborables después de recibir su pago
Condiciones de pago:	T/t, unión occidental
Capacidad de la fuente:	5000sqm por mes

Contacto

Descripción detallada del producto

Nombre del producto:	P3.91 interior LED pilar cúbico centro comercial publicidad RGB interior pilar de 360 grados	Brillo:	2000nits
Uso:	Instalación interior	Forma:	pilar cúbico
Paso:	3.91 mm	Tipo LED:	SMD
Resaltar:	Indoor LED video wall P3.91mm , SMD3535 cube LED display , DJ stage LED screen 2000nits

Indoor P3.9 LED Factory price Creative design LED Cube Screen 4 Side Cube LED Screen

♦Saving Energy

Reducing costs up to 95%(compared to incandescent systems)

Efficiency
Long life span-over 100,000hrs(approx.10 years)
Weather resistant
Low maintenance
High resolution and clarity

♦ Technical Training

Our company will train the users based on the manual, system use guide and maintenance guide. The training include system use, system maintenance and equipment protection.

♦ Applications
LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.

♦ Product Specification

Indoor SMD P3.91

Lamp size

2121

Resolution/mm

3.91

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

65410/m²

Module resolution

64x64

Module size/mm

250x250mm

View distance

≥3.91m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>800cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/8

Frame rate

60Hz

Refresh frequency

>3000Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<900W

Average power:/㎡

<300W

Self-check technology

LED spot self-check, communications check, power check,
temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

Indoor 6 Sides Smd3535 2000nits Cube LED Video Wall P3.91mm For DJ Stage 0

♦ Production Process:
1) Incoming Inspection→2) SMD→3) Plug-in→4) Wave Soldering→5) After Welding→6) Testing→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and Shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why Choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.

Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.

Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
