Electrónica Co., Ltd de Shenzhen Shichuangxinke
el profesional hace buena calidad, proporciona el producto perfecto y el servicio para cada cliente.
 |
| Place of Origin: | Made in china |
| Nombre de la marca: | SCXK |
| Certificación: | CE,ROHS, FCC.UL.CUL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | one cabinet sand one module can be avaiable. |
|---|---|
| Precio: | Negociable |
| Packaging Details: | wooden box, flight case, paper box can be available( All kinds of the box will guarantee the safety of the led display |
| Delivery Time: | within 7-10days, the led disdplay can be sent to you after your payment |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | iron and steel cabinet | cabinet size: | 160mm x160mm |
|---|---|---|---|
| module size: | 640mm x640mm | warranty: | 3 years |
| led light: | SMD2121 | Led chip: | Epistar |
| Color: | Full color | dot density: | 62500dots/sqm |

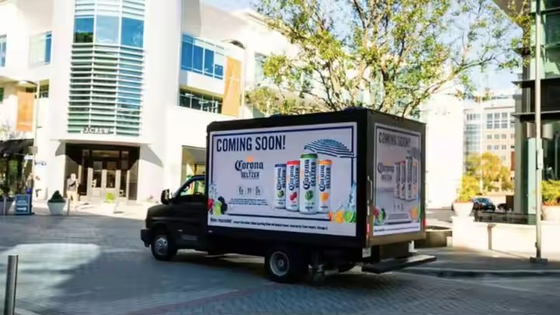

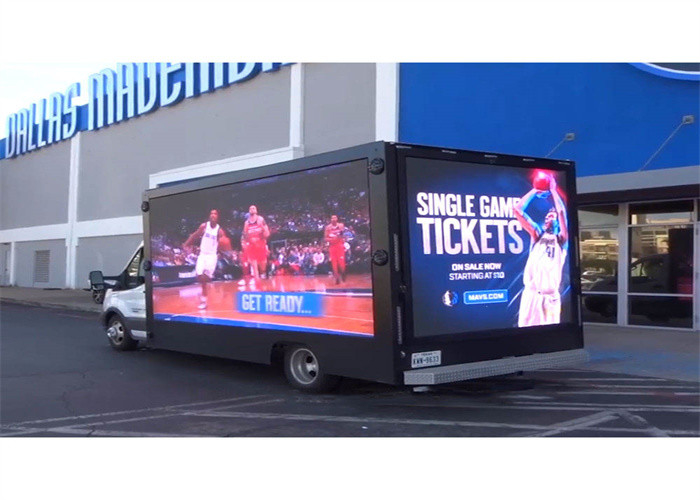

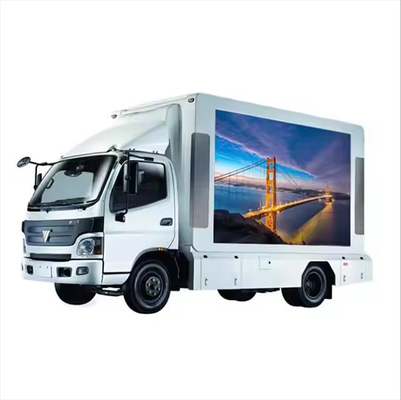

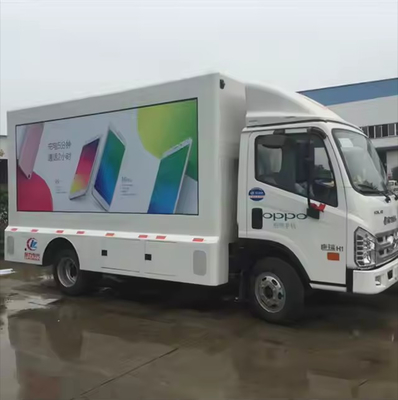

Traffic Poster P5 Flexible Display Module Screen Outdoor Truck advertising LED Video Wall
Quick details
Our factory has our own characteristic culture.It is full of passion,warmth,has our own sunshine motto,every worker in this firm is not only workmate,what's more,we are friends,the friendship is rich,all the staff try their best to work everyday.Our work slogan is:Work warmly,live happily;The spirit is:Strictly demanding,Consciously dedication;The goal is:Customer front,Service first;Service idea:Service loyally,live Wonderfully;We believe that SCXK will be bigger and bigger with our effort near future.Welcome to experience it.
Specification as follows.
| LED Lamps | Type | SMD2727(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 6mm | |||||||
| Module Size | 160mm x160mm | ||||||||
| Module Resolution | 64*32dots | ||||||||
| LED Cabinet | Cabinet Size | 640mmx640mm | |||||||
| Cabinet Resolution | 128dotsx128dots | ||||||||
| Cabinets Material | iron and steel cabinet | ||||||||
| LED Display | Pixel Density | 62500pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >2000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 4m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 22kgs/sq.m | ||||||||
| Refresh Rate | 2500hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃-60℃ | ||||||||
| Drive Mode | 1/32 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | (software) Led studio | ||||||||
| Software | LED studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Competitive advantage
Led moduel we have
| Indoor outdoor full color SMD 3 in 1 led display | |||||||
| P2 Iron cabinet | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $1,905.50 | wooden packaged |
| P2 die cast aluminum | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $2,301.50 | flight case package |
| P2.5 Iron cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 640x640 | $1,111.50 | wooden packaged |
| P2.5 die cast aluminum cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 480x480 | $1,195.50 | flight case package |
| P3 Iron cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $795.50 | wooden packaged |
| P3 die cast aluminum cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $842.50 | flight case package |
| P3.91 Die cast aluminum (smd) | 1/16scan | 250X250 | 64x64dots | 65410 dots | 500X500 | $795.50 | flight case package |
| P4 iron cabinet(smd) | 1/16scan | 256X128 | 64x32dots | 62500dots | 768x768 | $603.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/16scan | 256x128 | 64X32dost | 62500dots | 512x512 | $655.50 | flight case package |
| P5 Iron cabinet | 1/16scan | 320x160 | 64x32dots | 40000dots | 640x640 | $480.50 | wooden packaged |
| P5 die cast aluminum cabinet | 1/16scan | 320X160 | 64X32dots | 40000dots | 640x640 | $555.50 | flight case package |
| P6 iron cabinet | 1/16scan | 384x192 | 64X32dost | 27777 dots | 768x768 | $398.50 | wooden packaged |
| P6 die cast aluminum cabinet | 1/16scan | 192X192 | 32x32dots | 27777dots | 576x576 | $478.50 | flight case package |
| p10 iron cabinet | 1/8scan | 320x160 | 32x16dots | 10000dots | 960x960 | $350.50 | wooden packaged |
| All the pricelist include the control system,3 years warranty!(we will send some spare parts based on your order | |||||||
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts. For asynchronous control We use Onbon, or Xixun control system.
Project cas
we have many different project for our oversea market. And the P4 is very high defintion .If you have any question or confusion, just feel free to contact us.We will give you all kinds of assistance and supports.
Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
FAQ
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3. Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 10 days, after receiving the deposit.
Q4. What's the control system?
A4. For synchronization control. We use Nova, Linsn Or Colorlight control system.
For asynchronous control We use Onbon, or Xixun control system.
