Electrónica Co., Ltd de Shenzhen Shichuangxinke
el profesional hace buena calidad, proporciona el producto perfecto y el servicio para cada cliente.

|
| Place of Origin: | China |
| Nombre de la marca: | SCXK |
| Certificación: | CE,ROHS ,FCC,UL |
| Model Number: | SCXK-P4 |
| Minimum Order Quantity: | 1sqm can be available |
|---|---|
| Precio: | Negociable |
| Packaging Details: | the led display can be packaged with wooden box,paper box,flight case |
| Tiempo de entrega: | Entre 5 y 8 días |
| Payment Terms: | L/C, T/T, Western Union, Western Union, MoneyGram |
| Supply Ability: | 5000sqm/month |
| El material: | hierro y acero. aluminio fundido a presión | Color: | full color |
|---|---|---|---|
| densidad de píxeles: | 62500 puntos por m2 | Application: | Outdoor Advertising Led |
| Warranty: | 3 years | Tamaño del módulo: | 256x128mm |
| Brightness: | 8500nits | Name: | P4 Outdoor Led Screen |
Welcome to visit shichuangxinke electronic Co.,ltd

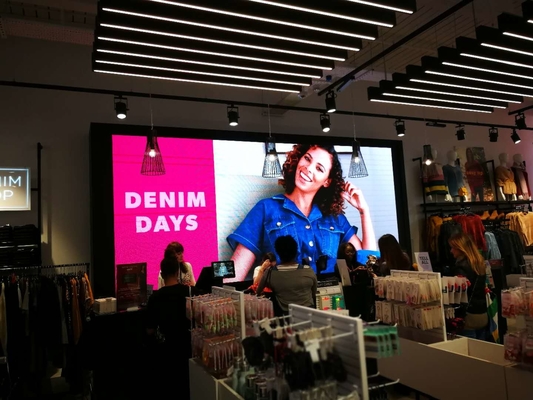

It can be used on the shopping mall,bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on.
we adopt many methods and very good after-sales service to sell our product all over the world.. Whenever and wherever we are ,
we always take the principle that professional makes good quality, provide the perfect product and service for our customer.
P4 led display parameter
| Outdoor P4 full color led display | |||||||||
| LED Lamps | Type | SMD3535(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 4mm | |||||||
| Module Size | 256mmx128mm | ||||||||
| Module Resolution | 64*32dots | ||||||||
| LED Cabinet | Cabinet Size | 768mmX512mm | |||||||
| Cabinet Resolution | 192pixels *128pixels | ||||||||
| Cabinets Material | Sealed Iron Cabinet | ||||||||
| LED Display | Pixel Density | 62500pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >8500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
| Best Viewing Distance | 6m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| average power supply | 300 w/sq.m | ||||||||
| Weight | 45Kgs/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/8 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | LINSN Control System (sender,receiver,HUB with 75 interface,software) | ||||||||
| Software | LED Studio (linsn) | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
We have our outstanding research and develop department and after-sales service workers, the separately design ability.
Our product mainly included the RGB led display,outdoor full color led display,indoor full color led display,curtain led display,
advertising led display,stage led display,led billboard,bi color led display,single color led display,rental led display,
stadium led display,led display module,car led sign display,hanging led display,mobile truck led display..
the outdoor and indoor full color led display
| the outdoor full color led display module ( smd and dip are available) | |||||
|---|---|---|---|---|---|
| Number | Drive mode | Moduel size | Resolution | Led standard | pixel density |
| P4 | 1/8 scan | 256x128mm | 64x32 | 3in1 | 62500 |
| p4.81 | 1/13scan | 250x250mm | 52x52 | 3in1 | 43222 |
| p5 | 1/8 scan | 160x160mm | 32x32 | 3in1 | 40000 |
| P6 | 1/8 scan | 192x192mm | 32x32 | 3in1 | 27778 |
| P8 | 1/4scan | 256x128mm | 32x16 | 3in1 | 15625 |
| P10 | 1/4scan | 160x160mm | 16x16 | 3in1 | 10000 |
| P12 | 1/4scan | 192x192mm | 16x16 | 3in1 | 6944 |
| P16 | static scan | 256x256mm | 16x16 | 3in1 | 3906 |
| P20 | static scan | 320x160mm | 16x8 | 3in1 | 2500 |
| P25 | static scan | 200x200mm | 8x8 | 3in1 | 1600 |
| P31.25 | static scan | 250x250mm | 8x8 | 3in1 | 1024 |
| the indoor full color led display module( indoor usage only) | |||||
| Number | drive mode | module size | resolution | led standard | pixel density |
| p1.923 | 1/32scan | 246x246mm | 128x128 | 3 in 1 | 270420 |
| p2 | 1/32scan | 128x64mm | 64x32 | 3 in 1 | 250000 |
| p2.5 | 1/16scan | 160x160mm | 64x64 | 3 in 1 | 160000 |
| p3 | 1/16scan | 192x192mm | 64x64 | 3 in 1 | 111111 |
| p3.91 | 1/16scan | 250x250mm | 64x64 | 3 in 1 | 65410 |
| p4 | 1/16scan | 256x128mm | 64x32 | 3 in 1 | 62500 |
| p5 | 1/16/scan | 320x160mm | 64x32 | 3 in 1 | 40000 |
| p6 | 1/16scan | 384x192mm | 64x32 | 3 in 1 | 27778 |
| p7.62 | 1/8 scan | 244x244mm | 32x16 | 3 in 1 | 17222 |
| p10 | 1/8 scan | 320x160mm | 32x16 | 3in 1 | 10000 |
Our certification as follows: ( we regard our quality as our life.and regard our reputation as our enterprise life.
all the led display will be through the strict test before the deliverty time .And guarantee ,3 years warranty,more than 10 years lifeuse .
♦ Applications

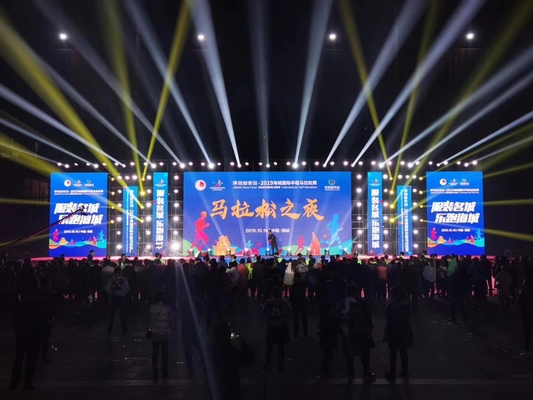

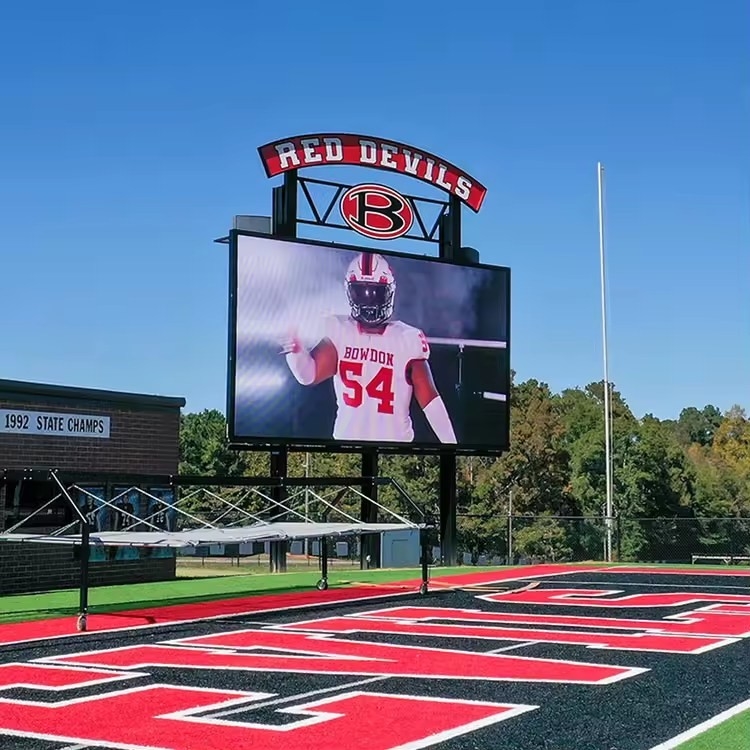

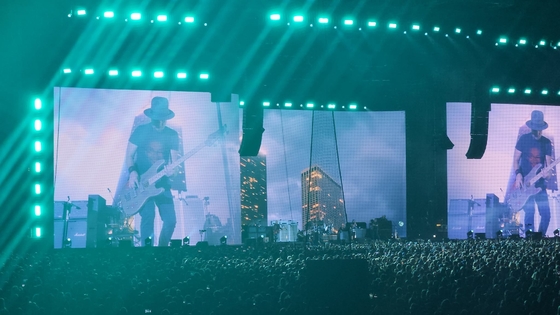

Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows,
fashion shows, concerts, ceremonies, entertainment,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
