Electrónica Co., Ltd de Shenzhen Shichuangxinke
el profesional hace buena calidad, proporciona el producto perfecto y el servicio para cada cliente.
 |
| Lugar de origen: | China |
| Nombre de la marca: | SCXK |
| Certificación: | CE/ROHS/FCC/ISO/UL |
| Número de modelo: | P3.91 |
| Cantidad de orden mínima: | 10sqm |
|---|---|
| Precio: | negotiation |
| Detalles de empaquetado: | caja de la madera contrachapada, caso del vuelo, usted elige de lo que usted tiene gusto. |
| Tiempo de entrega: | 5-12 días laborables |
| Condiciones de pago: | T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | sqm 5600 por mes |
| Uso:: | Exhibición llevada acontecimientos vivos | Instalación:: | fijo/caída/amontonamiento |
|---|---|---|---|
| Certificación:: | UL de la FCC de RoHS de los CB del CE | Tarjeta de control del LED:: | Linsn/Nova |
| Microprocesador llevado:: | Epistar | Nombre de producto:: | P3.91stage llevó la exhibición |
| Frecuencia de actualización:: | 1920HZ | Tamaño de gabinete: | 500x500m m |
| Alta luz: | Pared video llevada interior P3.91,pared video llevada interior 1200cd/M2,SMD2121 llevó la pantalla de la cortina de la etapa |
||
P3.91 led display Feature:
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Module Parameter:
| Pixel pitch | 3.91mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 250x250mm |
| Module weight | 0.35kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 4pcs |
Cabinet Parameter:
| Cabinet size | 500x500mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 6.5kg |
| Cabinet resolution | 128x128 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 65410dots/m² |
| Brightness | ≥1200cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3.9m |
| Max.power consumption | 890W/m² |
| Avg.power consumption | 330 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000 hours |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc. |
Product Function
Stable performance,wide applicability, high brightness, superb performance/price ratio.
1.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.
2.Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.
Product after service
Stable performance, wide applicability, high brightness, superb price / performance ratio.
1. High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.
2. Superb price / performance ratio offers both top notch quality and reasonable price, lamaximisation of the value of your investment.
9.Product post services
Good after-sales service
1. Three-years warranty for the entire system, except human factors and force majeure Guarantee.
2.One of the year the quality, maintenance of life, and to ensure the maintenance time in the contract.
3.The warranty period: solving problems for users through telephone, fax or email. Update the software for free.
4.As to product quality problems caused by the design, manufacturing, technology installation, equipment, replacement and maintenance are free. System damage caused by force majeure (flood, fire, earthquake, war, and so on) as well as users) artificial disturbance (construction, cleaning) should be coordinated by the two parties to résoudre.Entretien
5.Life long for the system: after the warranty, we charge only the cost of equipment.

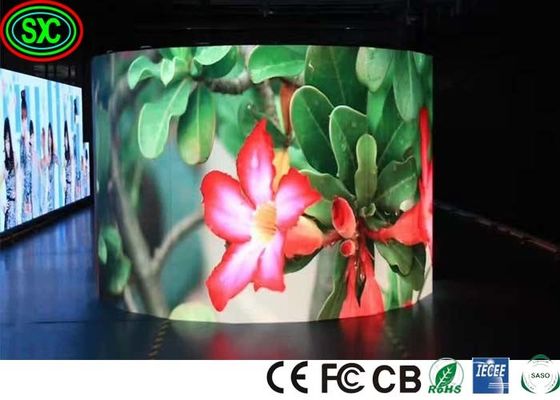

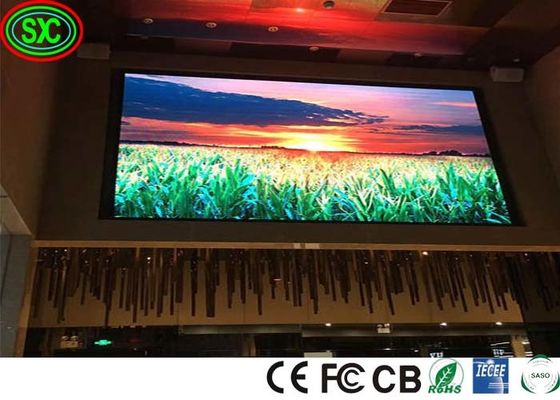

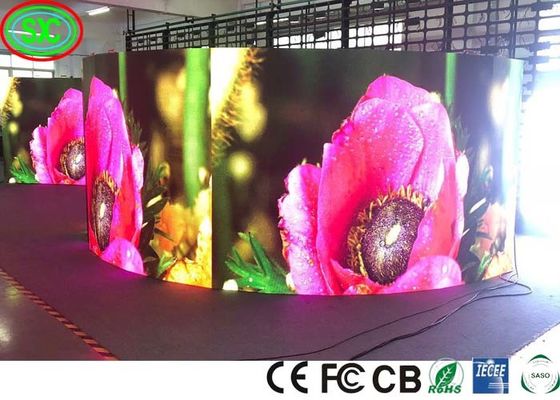

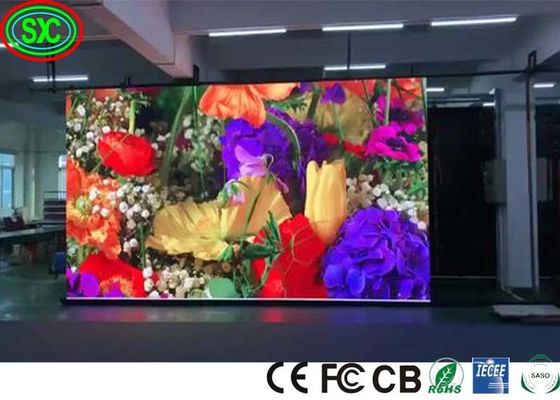

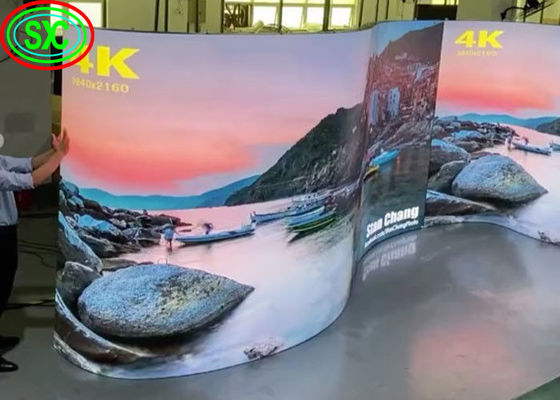

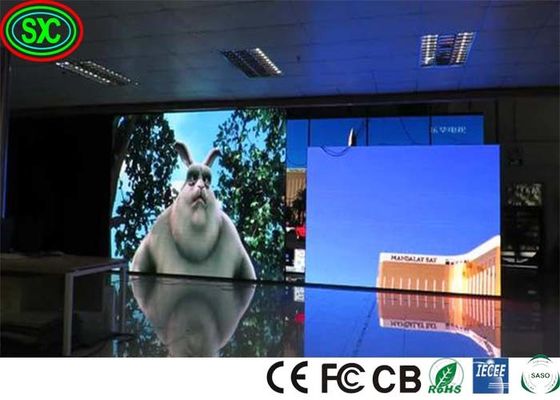

Our Case
Our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
