Electrónica Co., Ltd de Shenzhen Shichuangxinke
el profesional hace buena calidad, proporciona el producto perfecto y el servicio para cada cliente.
 |
| Lugar de origen: | China |
| Nombre de la marca: | SCXK |
| Certificación: | CE/ROHS/FCC/ISO/UL |
| Número de modelo: | G3.91-7.8125 |
| Cantidad de orden mínima: | sqm 10 |
|---|---|
| Precio: | negotiation |
| Detalles de empaquetado: | el caso de madera o el caso del vuelo está disponible. |
| Tiempo de entrega: | 7-12 días laborables |
| Condiciones de pago: | T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 5000sqm por mes |
| Uso: | interior/al aire libre | Color:: | A todo color |
|---|---|---|---|
| Tamaño del panel:: | 500x1000m m | Echada del pixel:: | H3.91-V7.82 |
| Función de la exhibición:: | Vídeo | Pixeles:: | 3.91-7.82m m |
| Certificado:: | FCC de RoHS del CE | Tamaño del módulo:: | 500mm*125m m |
| Brillo:: | 1200-5000cd/sqm | Vida:: | 100000 horas |
| Microprocesador llevado:: | Epistar + Silan | ||
| Alta luz: | P3.91 ven a través la pantalla de cristal,5000cd/Sqm ven a través la pantalla de cristal,Pared video llevada transparente SMD1921 |
||
Transparent Digital Signage is a innovative technology allowing you to turn your window into a digital billboard, suitable for advertising all products and services. The integrated LED lamps are almost invisible from the outside of the building, thus making no difference to its appearance. This type of digital signage provides 80% transparency which enables you to still be able to look through the glass window.
Transparent LED screen is a kind of LED display screen. The design principle of transparent LED screen is the same as that of conventional LED screen, which is developed on the basis of conventional LED screen. Transparent LED screen adopts light bar design, with high light transmittance, light structure and convenient control.
With the development of economy, people's pursuit of beauty is higher. Now the construction of the city, the beautification of the building, the peculiar shape of the building, and the decoration of the chain stores all need more eye-catching design effects. Glass can enhance the close contact between inside and outside, also can bring sunshine
to the indoor environment, and the display of video can enhance the visual beauty. The biggest characteristic of transparent LED screen is light transmission, and the transmittance is relatively high, and can display the shocking video effect with high clarity.
Features of Shenzhen TransLight Display transparent LED screen:
1. Transparent LED screen is also known as LED glass curtain wall screen; the transparent screen unit module can be hoisted and stacked, and can be spliced into a large area according to the size of the installation position.
2. It is a new product based on the traditional LED display, which is composed of a single LED light bar;
3. The transparency is high; the transparency is 60% - 80%, which has little influence on the daylighting of buildings;
4. Good heat dissipation and light weight;
5. Suitable for building facade, suitable for installation in front of glass curtain wall.
6. Light weight, ultra-thin, convenient installation and maintenance, no structure, saving cost and improving efficiency.
7. Optional maintenance before or after the screen increases the adaptability to installation conditions;
Application scope: widely used in glass curtain wall, shop window, shopping mall, terminal building, automobile exhibition hall, exhibition hall, business hall, 4S shop, office glass curtain wall,etc.
Specification
indoor le
| Product Name | Transparent Advertising Display |
| Pixel Pitch | 3.91mm(W)*7.8125mm(H) |
| Module Size | 1000mm*1000mm |
| Density | 32768(dot/m²) |
| Cabinet Size | Customzied |
| Led Standard | SMD1921 |
| Brightness | ≥4500CD |
| Pixel configuration | 1R1G1B |
| Refresh Rate | 1200HZ |
| Protection Level | IP31 |
| Driving method | 1/8 scan |
| View Angle | H:±150 degree V:±210 degree |
| Best View distance | 4-100m |
| Power Consumption | 800W/m² |
| Screen Life-span | ≥100,000 hours |
| MTBF | ≥5,000 hours |
| Blind Spot Rate | <1/50000 |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Environment Temperature | -20 Celsius~+60 Celsius |
| HumidityHumidity | Humidity:10%~90% RH |
| Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| Certificate | CE, ROHS, FCC |

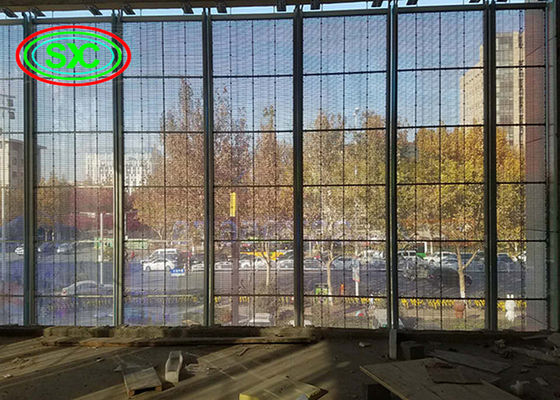

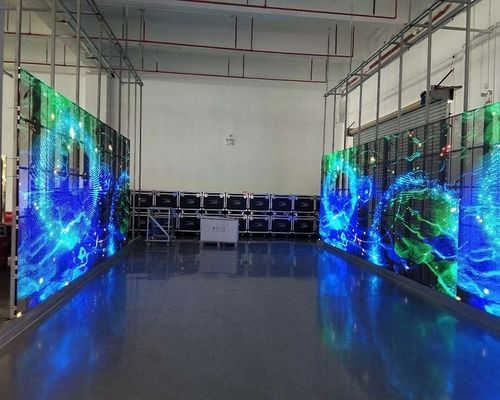

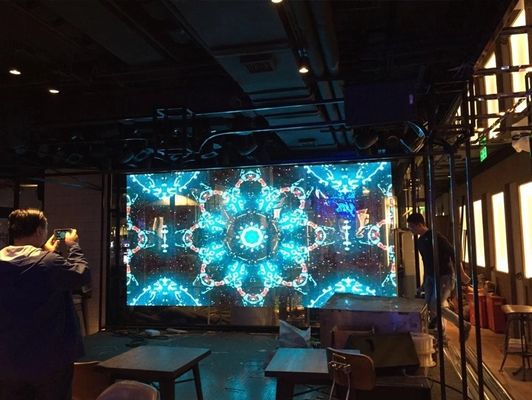

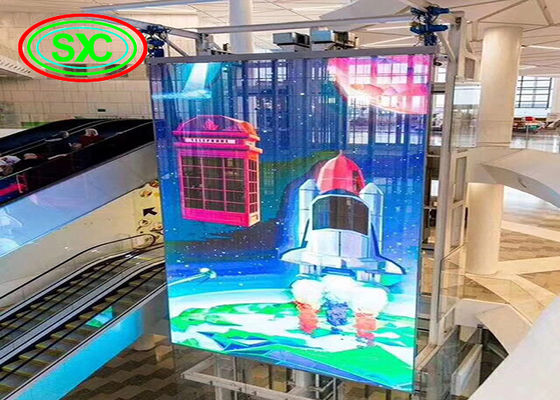

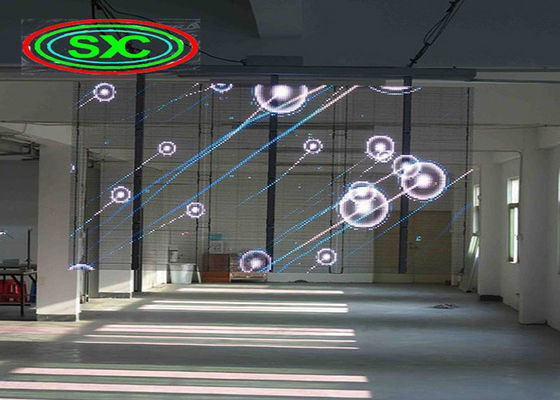

Our case
Certificate
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
