Electrónica Co., Ltd de Shenzhen Shichuangxinke
el profesional hace buena calidad, proporciona el producto perfecto y el servicio para cada cliente.
 |
| Lugar de origen: | China (continente) |
| Nombre de la marca: | SCXK |
| Certificación: | CE,ISO,DCC,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| Precio: | 487-566USD/sqm |
| Packaging Details: | Wooden and flight cases. |
| Tiempo de entrega: | 12 a 15 días hábiles. |
| Condiciones de pago: | T/T, Western Union |
| Supply Ability: | 5000 sqm/month |
| Country of origin: | China | Brand: | SCXK |
|---|---|---|---|
| Pitch de los píxeles: | 5 mm | Tamaño del módulo: | 320*160 mm |
| Cabinet: | Iron | Brightness: | 6000cd/sqm |
| Cabinet size: | 960*960mm | Pixel density: | 40000dots/sqm |

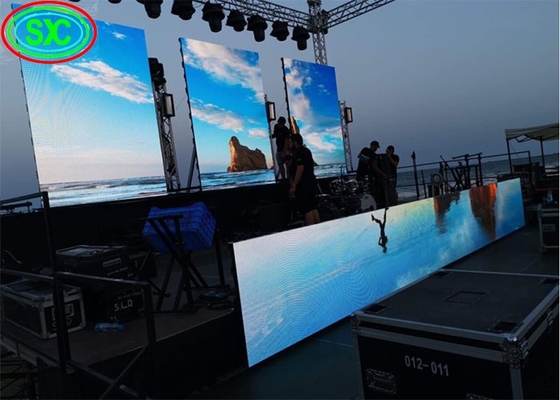

Semi Stage LED Screen P5 Full Color High Resolution 1/8 Scan Mode IP65 HD
Semi Outdoor Series:
1.Semi outdoor full color led displays the waterproof can reach to IP65.
2.High resolution,brightness,refresh rate,can have a vivid video.
3.Super wide angle.
4.Our company has been established for more than ten years. We have rich product
experience and sales service. At present, our products have been exported to more than 20 countries overseas
and established long-term cooperation. In the future, I hope you are our next customer!
Specifications :
| Semi Outdoor P5 LED Display Screen | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 320x160 | ||||
| View distance | 5-50m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 6000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1200Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Some questions for your reference:
1.Where is your company?
-Our company is located in Shenzhen of China,and we have our own factory.
2.How about the payment?
-We receive T/T and Western Union.
3.How is the delivery time?
-It's normally about 12-15 working days.
4.Is the package for free?
-Yes,not only the package,we will give you 3% spare parts,if the quantity is large,the video processor also free!
