Electrónica Co., Ltd de Shenzhen Shichuangxinke
el profesional hace buena calidad, proporciona el producto perfecto y el servicio para cada cliente.
 |
| Lugar de origen: | CHINA |
| Nombre de la marca: | SCXK |
| Certificación: | CE/ROHS/FCC/ISO/UL |
| Número de modelo: | P4 |
| Cantidad de orden mínima: | 10 metros cuadrados |
|---|---|
| Precio: | negotiaton |
| Detalles de empaquetado: | caso del vuelo, caja de la madera contrachapada, usted elige de lo que usted tiene gusto. |
| Tiempo de entrega: | 7-15 días laborables |
| Condiciones de pago: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Capacidad de la fuente: | sqm 5200 por mes |
| Uso: | Vídeo | Color:: | A todo color |
|---|---|---|---|
| Tamaño del panel:: | 256x128m m | Pixeles: | 4m m |
| Tamaño de gabinete:: | 512*512m m | Frecuencia de actualización:: | 1920HZ |
| Brillo:: | 1000cd/m2 | Densidad del pixel:: | 62500 dots/m2 |
| Tipo de impulsión:: | Impulsión constante (2037/5124) | Garantía:: | 2 años |
| Alta luz: | el panel del fondo de etapa 1000cd/M2 LED,El panel llevado del fondo de etapa SMD2121,Pared video interior de 250W/M2 LED |
||
Indoor led display technical parameter
Module parameter
4mm |
|
| Pixels | 64*32dots |
| Module size | 256*128mm |
| Pixel configuration | 1R1G1B |
| Pixel density/m² | 62500 |
| Driving mode | Constant current 1/16 scanning |
| Cabinet material | Die-cast aluminum |
| Cabinet size | 512*512mm |
| LED specification | smd2121 |
| Brightness | >1500cd/m² |
| Best perspective | 120°/120° |
| Best viewing distance | ≥4mm |
| Maximum power:/㎡ | 750W |
| Average power:/㎡ | 250W |
| Voltage | 5V40A |
| Storage temperature | -40℃～ +85℃ |
| Relative humidity | 10%～95% |
| Working temperature | -10℃～+50℃ |
| Lifespan | 100000 hours |
| Mean Time Between Failure | ≥10000 hours |
| Gray scale | 65536 level arbitrary |
| Frame rate | ≥500Hz |
| Image refresh | ≥60Hz |
| Bright adjustment | Automatic / manual ≥ 256 level |
Cabinet Parameter:
| Cabinet size | 512*512mm |
| Cabinet material | die-casting aluminum cabinet |
| Cabinet weight | 5.5kg+/-0.05kg |
| Cabinet resolution | 128*128dots |
| Ingress protection | Front/Rear IP65/IP54 |
| Pixel density | 62500dots/m² |
| Brightness | ≥6500cd/m² |
| Viewing angle | H110° V120° |
| Min.viewing distance | 4m |
| Max.power consumption | 1000W/m² |
| Avg.power consumption | 400W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥60Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥100000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

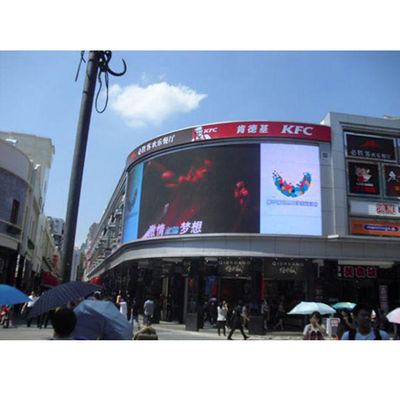

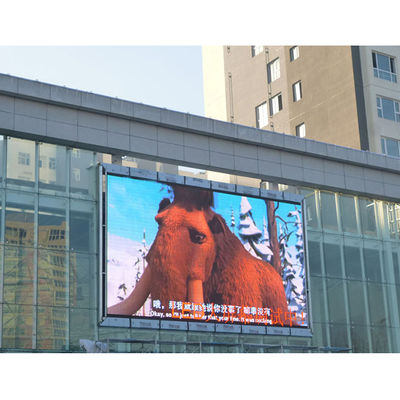

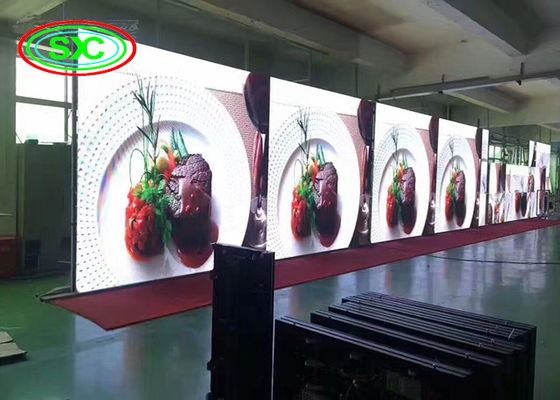

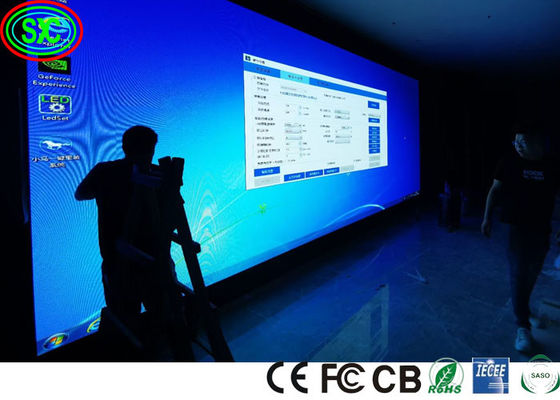

Our case
company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
A:Yes, we welcome sample order to test and check quality. Both for LED module and whole screen.
Q2.What about the lead time?
A:Order less than 100 square meter led time take 15 working days.
A:Low MOQ, 1 square meter or a module checking is available.
A:We mostly accept FOB train term, but we can help you order and arrange shipping agent. It usually take 20 to 30 days on sea and a few days
for customer clearance.
A:First, let us know your requirements or applications.
Then, we quote according to your requirements or applications.
Third, customer confirms the design document and places deposit for formal order.
Last, we arrange the products.
A:Yes, and please inform us formally before our production and confirm the design firstly based on our sample.
A:Yes, we offer 1 year warranty to our product.
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution including recall according to the real situation.
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
